This article and video will cover the Autovitals and Mitchell 2-way integration.

Mitchell 2-Way Integration Video

For the best video viewing experience:

1. Click the gear icon and then click Quality

2. Select the highest-quality setting (usually 1080p60)

3. Click Full Screen

Getting Started: What information is required in Mitchell?

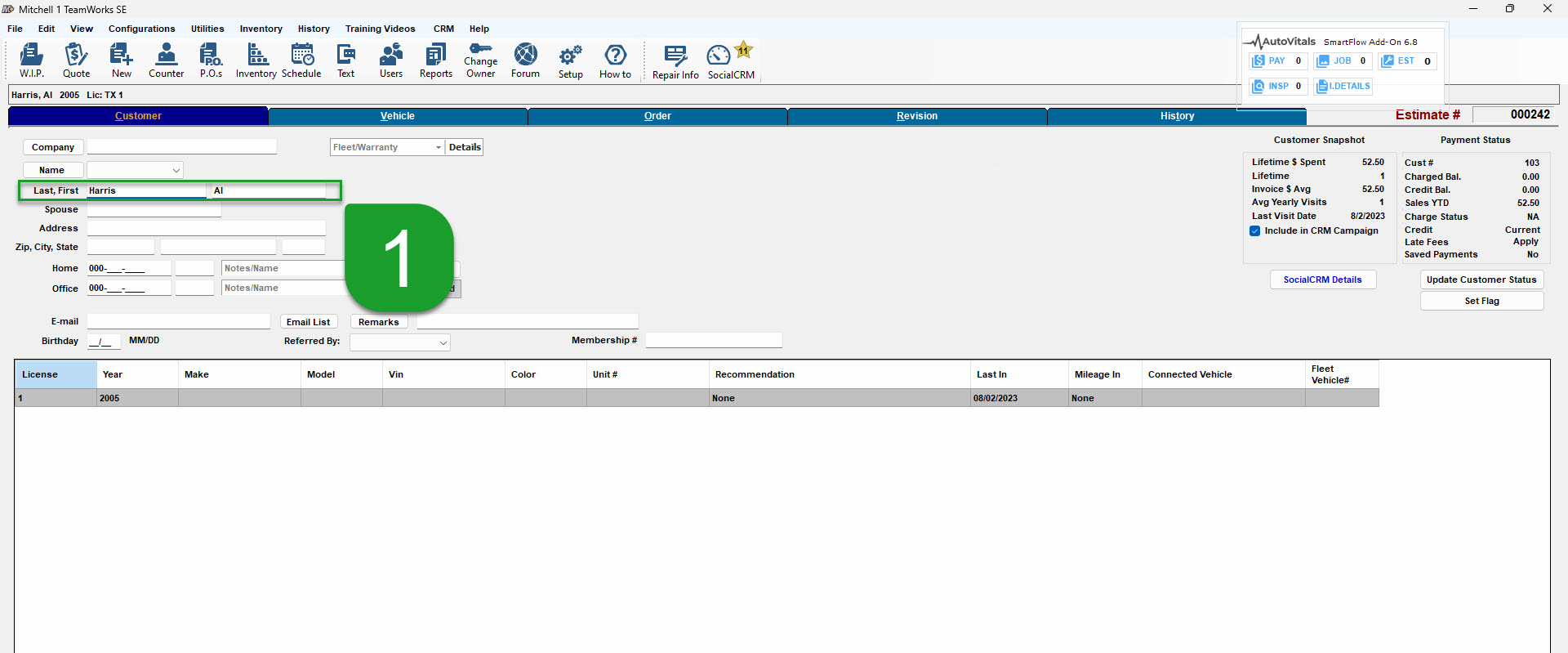

1. Customer name

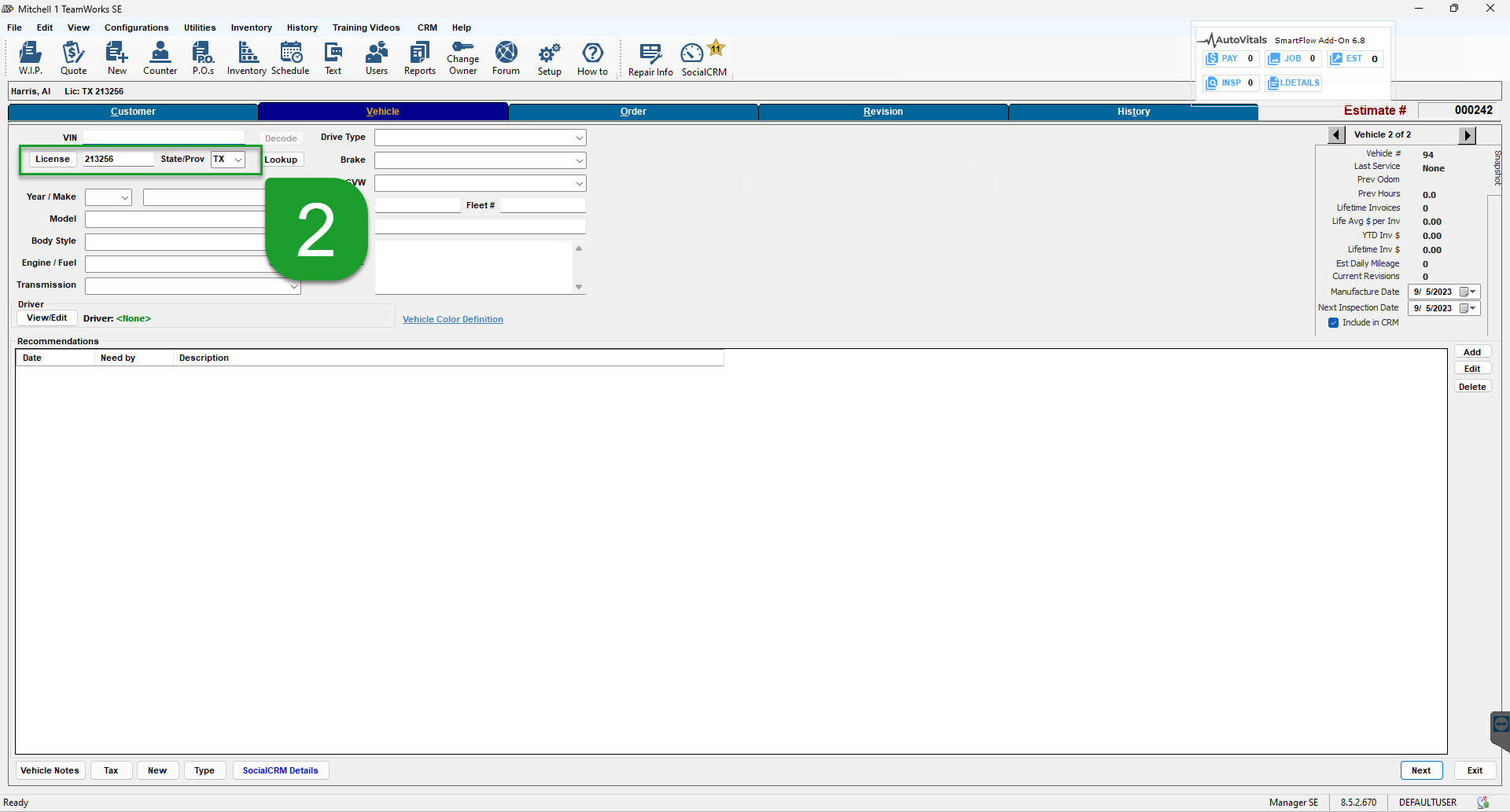

2. License Plate

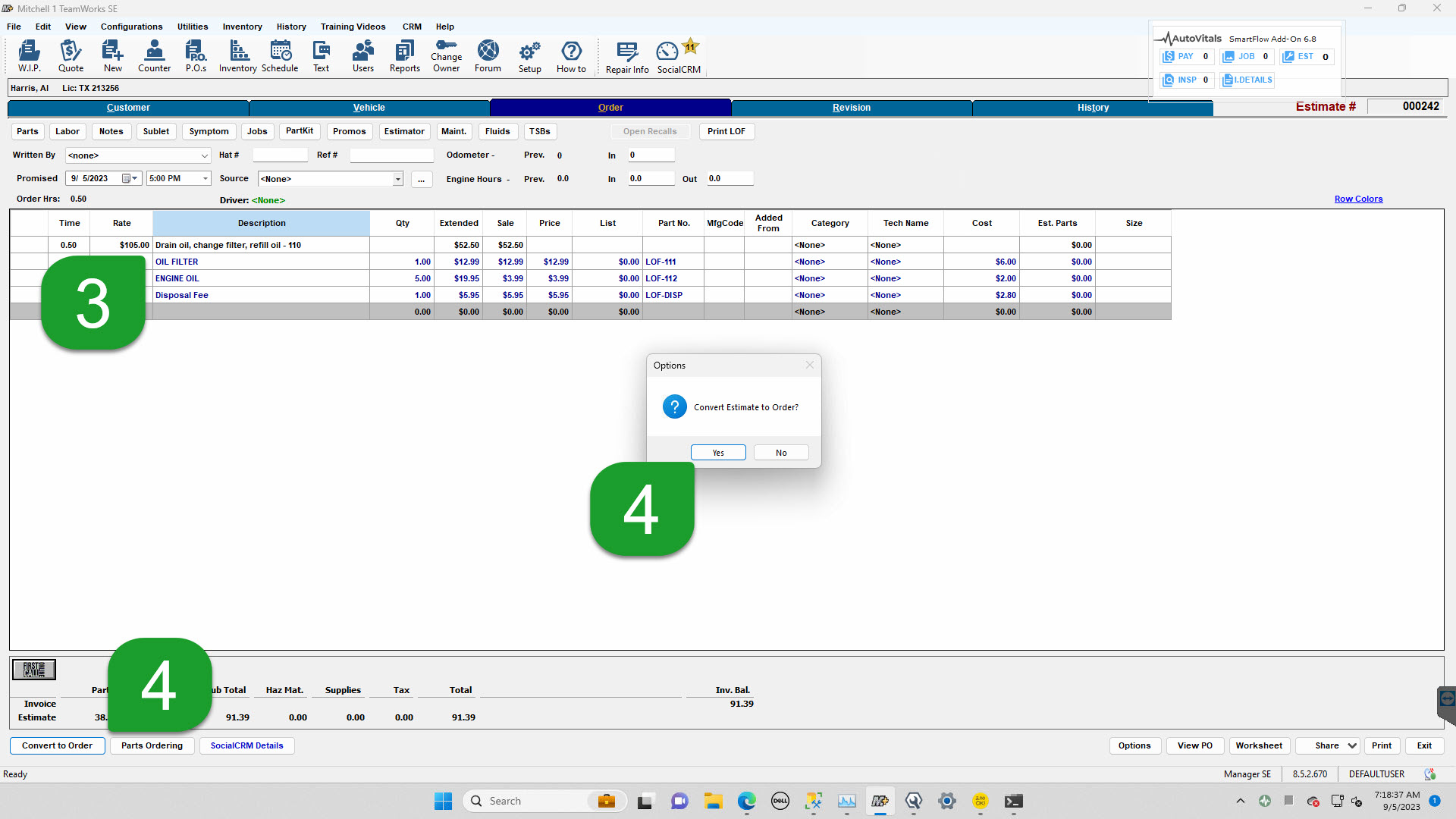

3. At least 1 authorized Labor line
4. Convert from Estimate to Order

How to Send Information from Autovitals to Mitchell

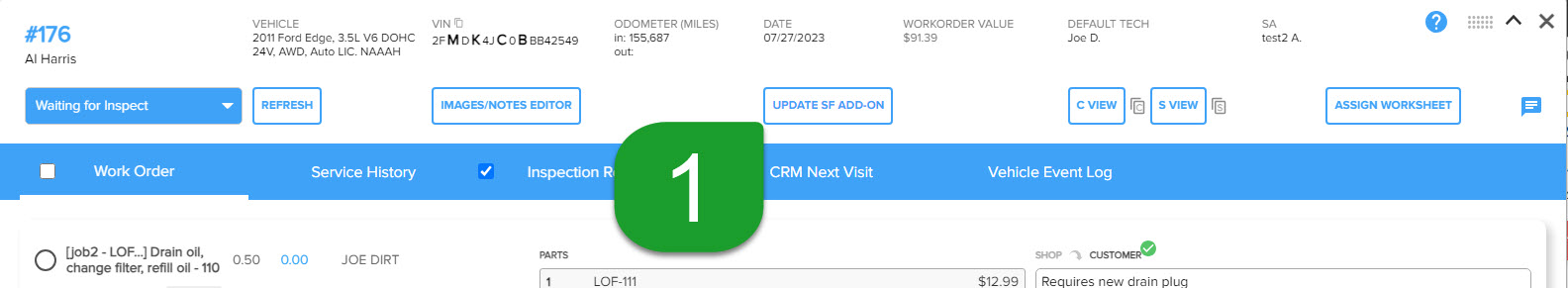

• On Today’s Vehicles Page with the RO open, there is a button on the Repair Order header

  1. UPDATE SF ADD-ON will send all of the information available, including VIN, license plate, odometer in, canned jobs from the inspection, job line notes & images, as well as an inspection URL

Supported 2-Way Integration Information

Summary of transferrable information

• Vehicle information
  • VIN
  • License Plate
  • Odometer In
• Inspection Information
  • Recommended Canned Jobs
  • Customer-facing Notes and Images
  • Inspection URL
• Job Information
  • Customer-facing Notes & Images

Vehicle Information

Tablet

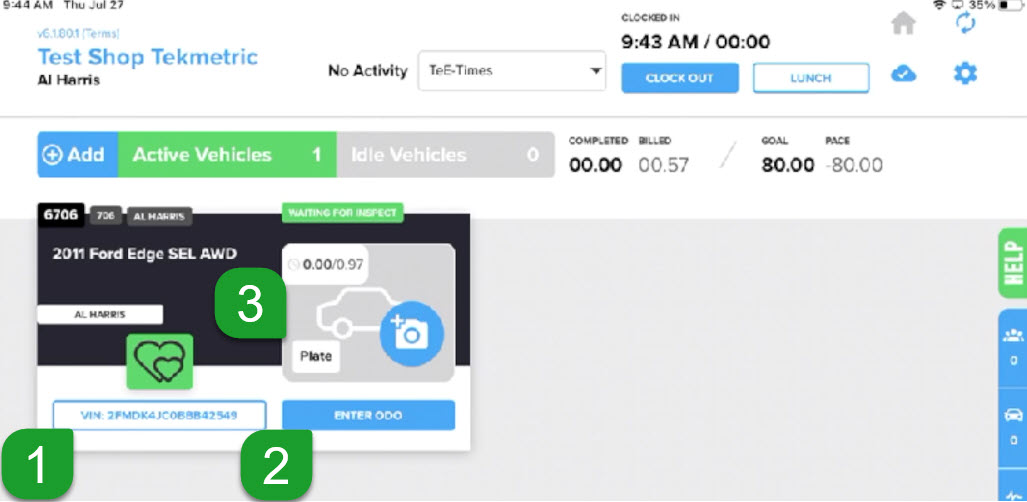

From the Autovitals.x app, the technician can easily gather vehicle-specific information right from the home page.

1. Press the VIN button to open the camera and scan the VIN tag of the vehicle and this will automatically add the VIN as well as trim level, engine, and drivetrain options
2. Press the ENTER ODO button to enter the IN mileage
3. Press the Plate button to manually enter the license plate

Today's Vehicle Page

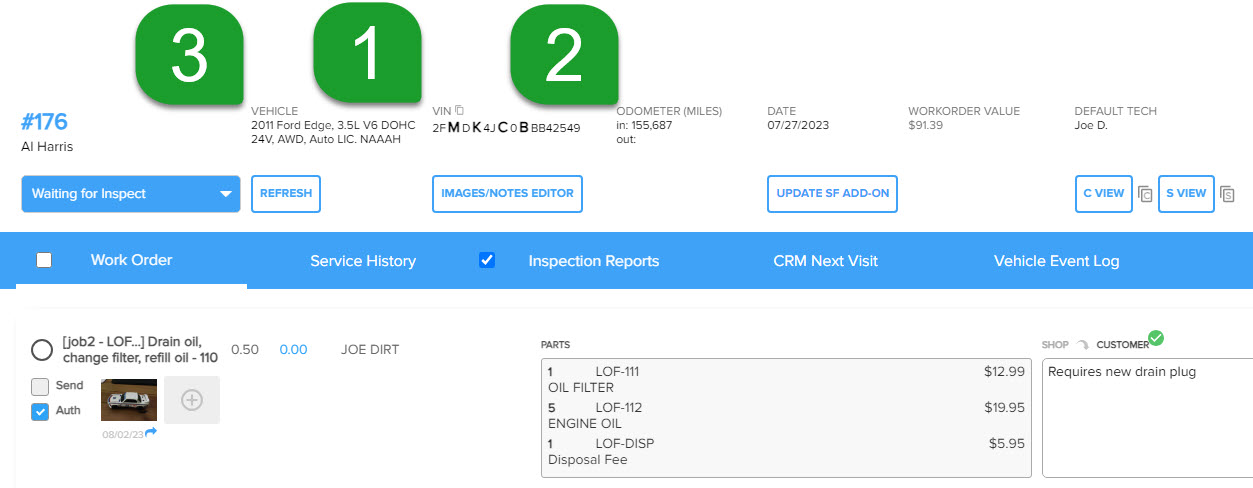

Once this information is gathered, you will be able to see this information on the Repair Order Tile pop-up

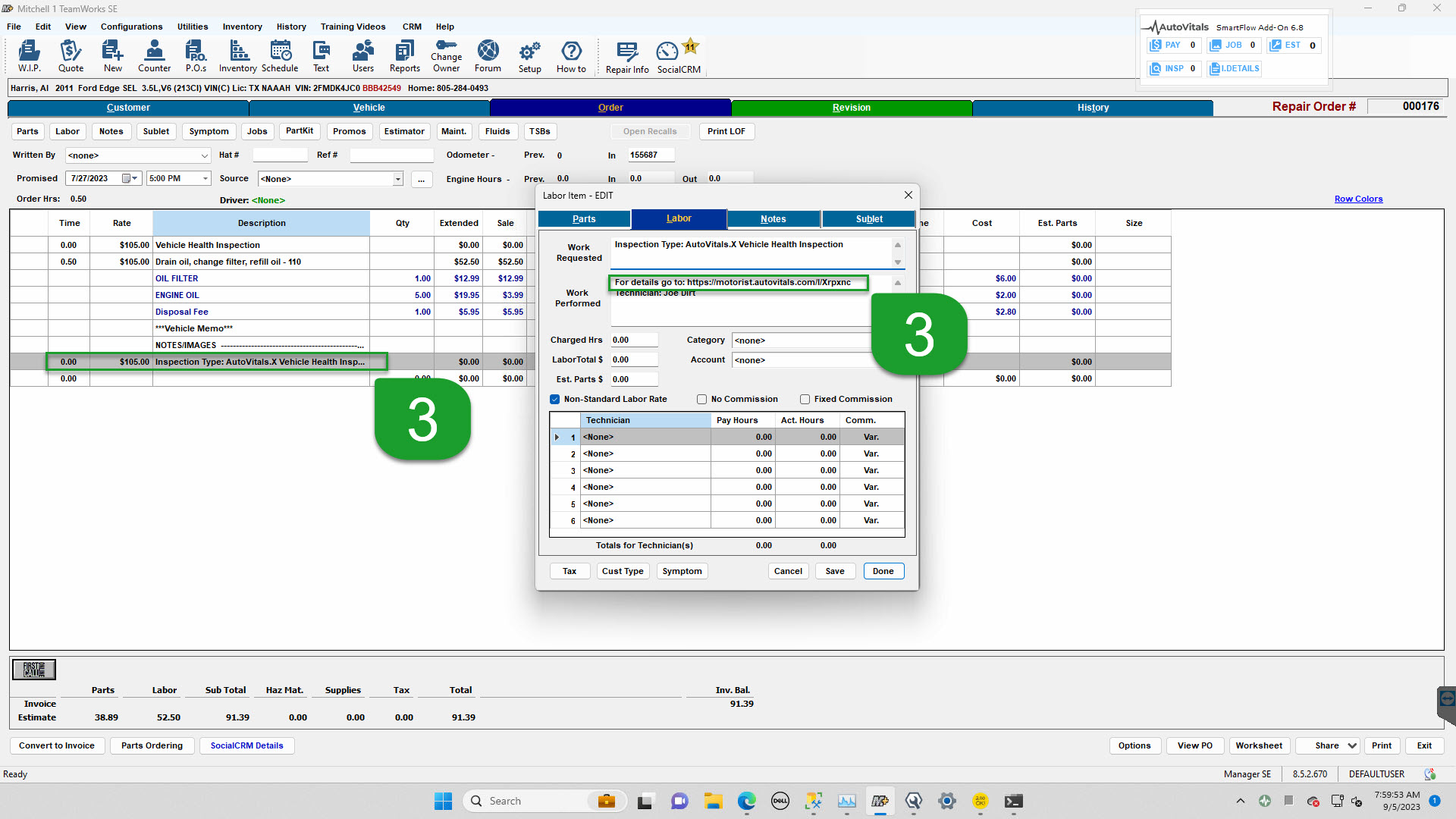

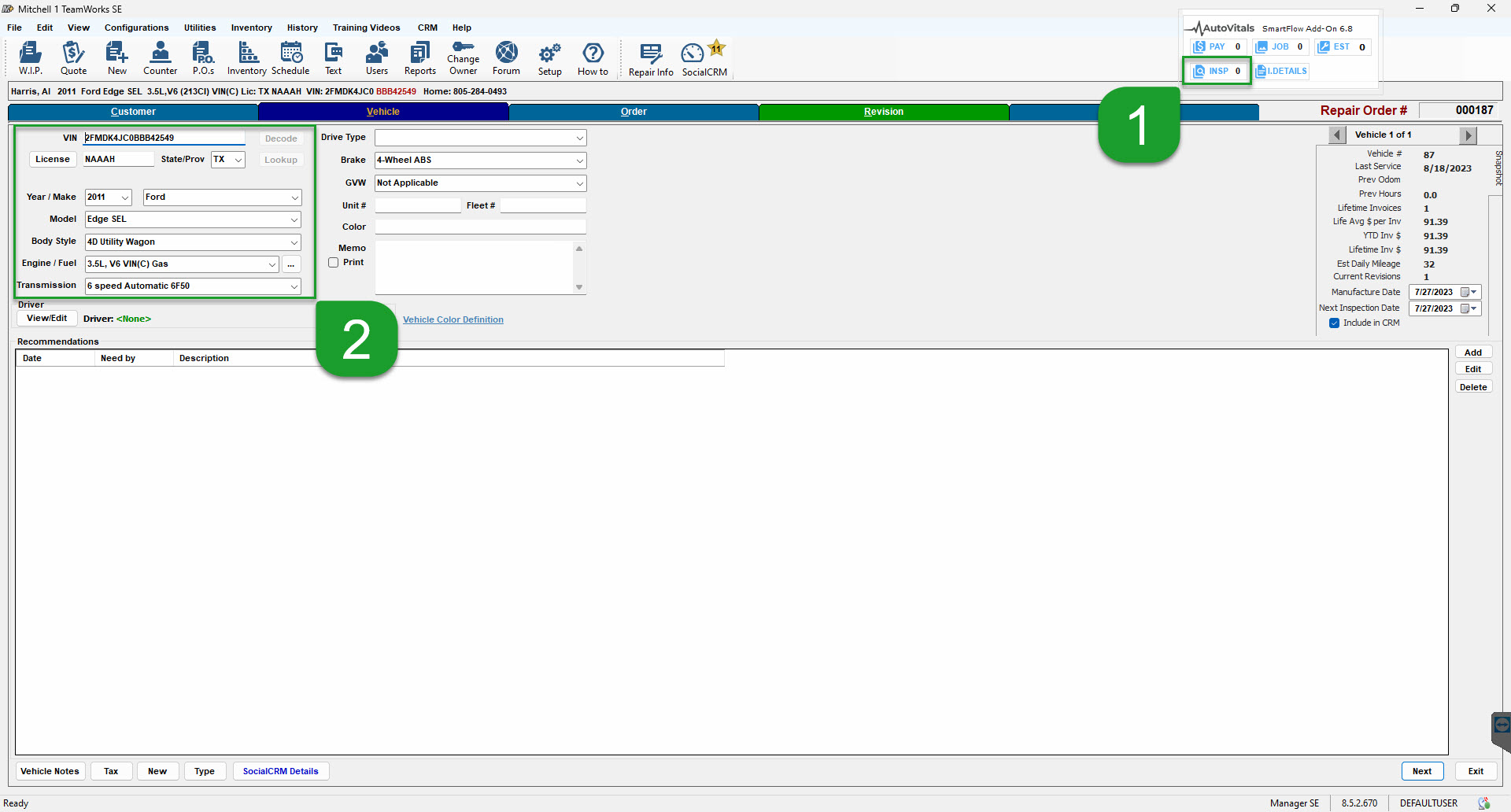

After the Service Advisor presses the UPDATE SF ADD-ON button for the current Repair Order, by pressing the (1) INSP button on the SmartFlow Add-On, the (2) VIN, Year / Make, Model, Body Style, Engine / Fuel, Transmission, License, and Odometer In fields in Mitchell will be filled in with that information, as well as a note line added to the Order including the (3) Inspection URL

Inspection Information

After the technician has completed the inspection on the Autovitals.x app, the URL for the inspection can be sent back to Mitchell. Additionally, if you have your Mitchell canned jobs integrated with your inspection sheet, those canned jobs can be sent back to a Sub-Estimate in Mitchell which can greatly decrease estimating time if utilized correctly.

1. Pre-configured canned job selected as the ACTION

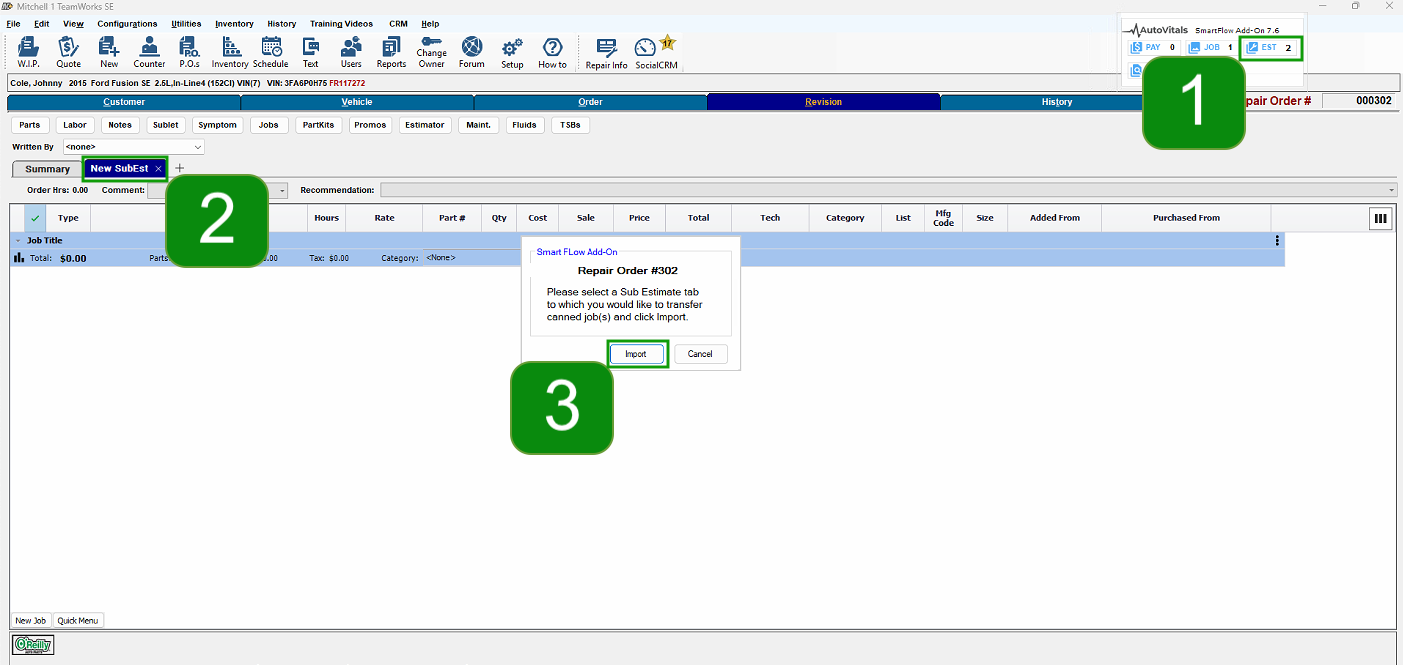

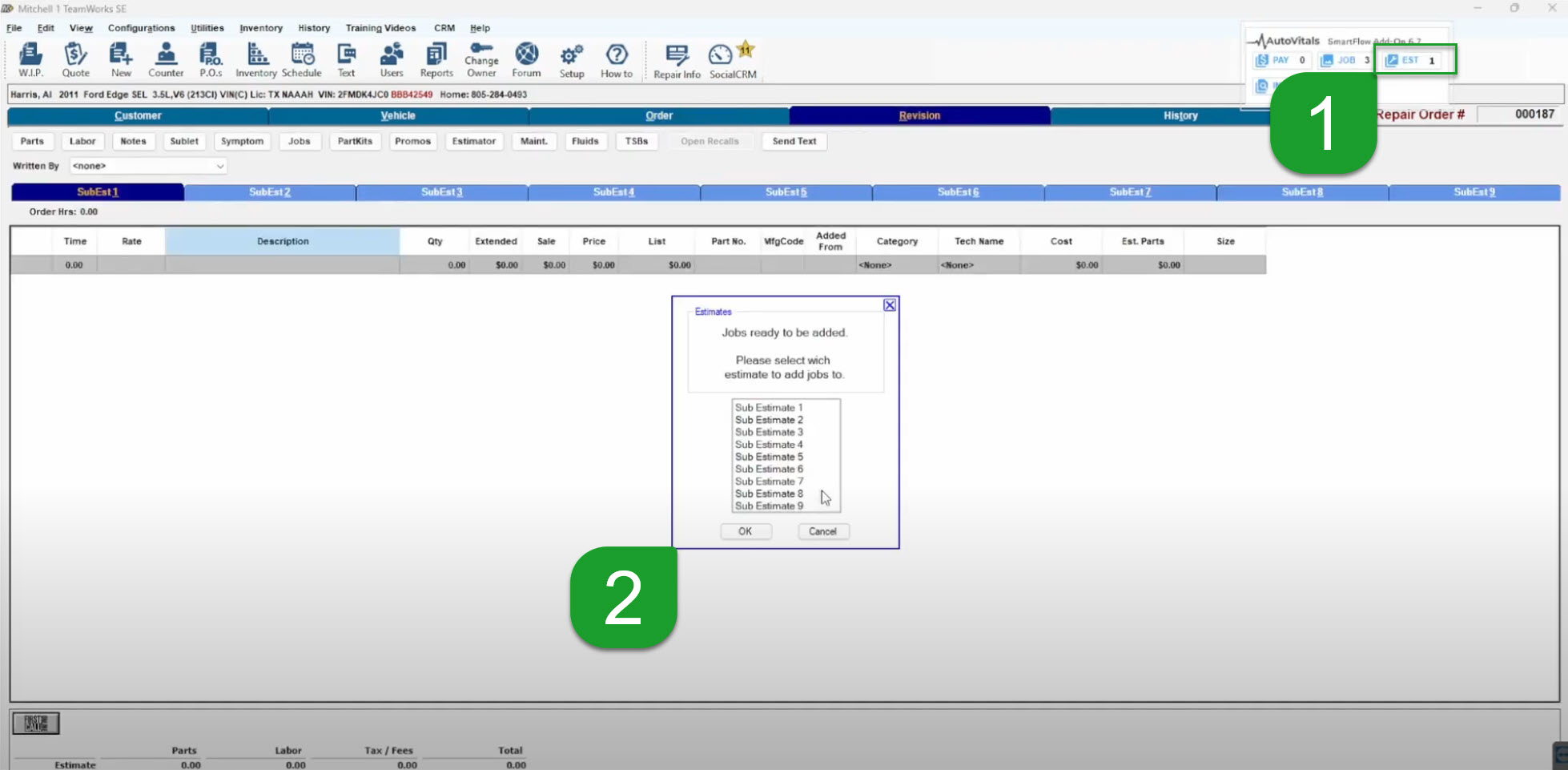

Once the (1) EST button is pressed via the SmartFlow Add-On the configured canned job recommendations will populate as labor lines on the (2) Sub-Estimate of your choosing in Mitchell.

Job Information

If the Technician adds information to an approved labor line, that information can be sent back to Mitchell.

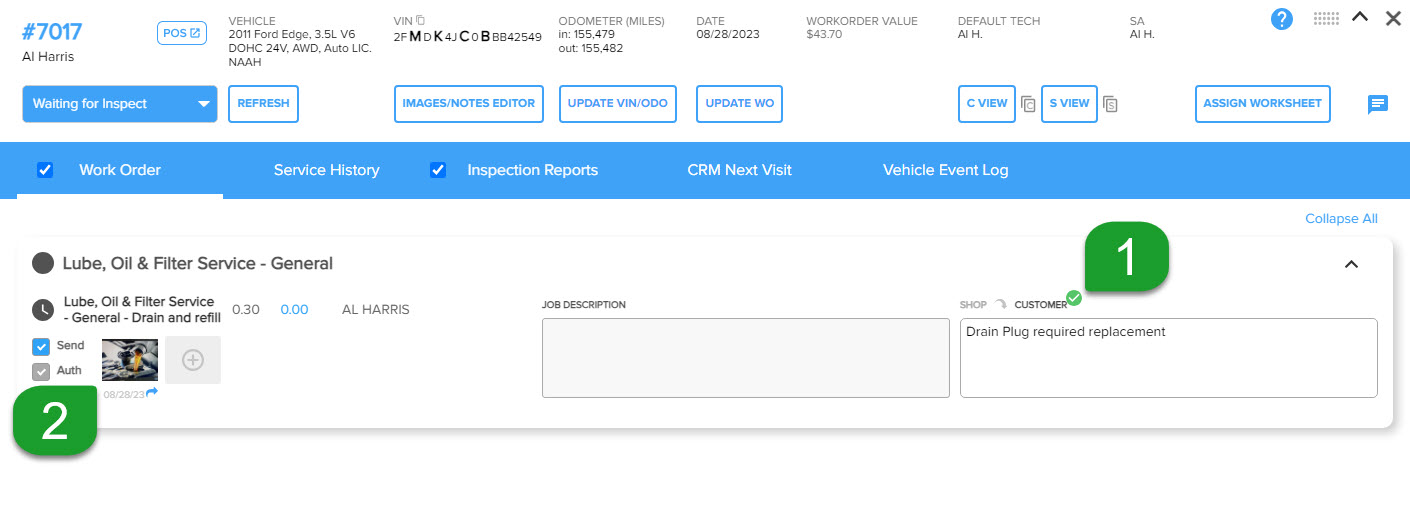

1. Approved Customer Note
2. Approved Customer Image

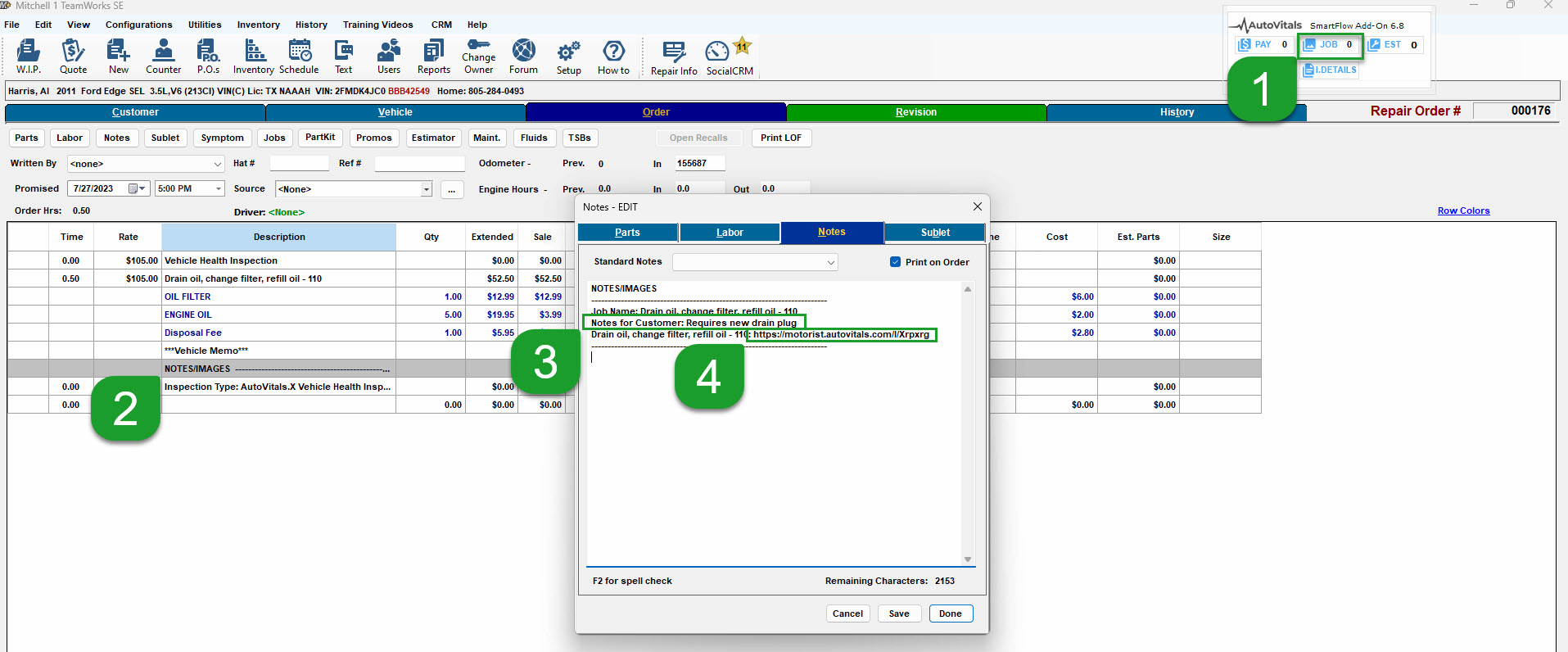

Once the (1) JOB button is pressed via the SmartFlow Add-On, any (2) labor lines with approved Customer (3) Notes with (4) Images will update to display that information (Note: an Image on the specific labor line is required in order to have that labor line Note transferred)

If you have any additional questions, reach out to our Support Team by clicking Submit a Request in the top right-hand corner of this page.
